For Power Supply Systems

(I) ARRESTER SURGE T2 IPRD 20R 1P+N 20KA 350V R/I ACTI9

Infrastructure

(I) ARRESTER SURGE T2 IPRD 20R 1P+N 20KA 350V R/I ACTI9

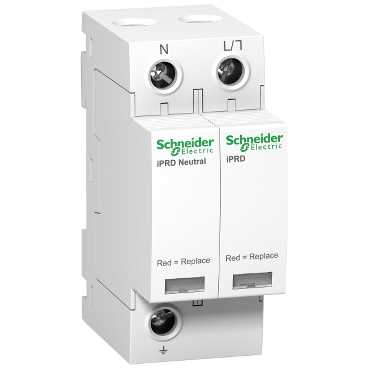

This Acti9 iPRD20r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is 1.1kV. The Up Voltage protection level in common mode (between neutral and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 215g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.

Hover to Zoom

(I) ARRESTER SURGE T2 IPRD 20R 1P+N 20KA 350V R/I ACTI9
  • Corys SKU 0000320505
  • Part No A9L20501
  • Brand SCHNEIDER ELECTRIC LTD (EDI)
  • Corys SKU 0000320505
  • Part No A9L20501
  • Brand SCHNEIDER ELECTRIC LTD (EDI)

    • Infrastructure

    (I) ARRESTER SURGE T2 IPRD 20R 1P+N 20KA 350V R/I ACTI9

    This Acti9 iPRD20r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is 1.1kV. The Up Voltage protection level in common mode (between neutral and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 215g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.

      This Acti9 iPRD20r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is 1.1kV. The Up Voltage protection level in common mode (between neutral and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 215g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.






									Description
									This Acti9 iPRD20r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is 1.1kV. The Up Voltage protection level in common mode (between neutral and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 215g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.





									Corys No

										0000320505




      Construction size4 modular spacing


								UOM
								EA




								Brand
								SCHNEIDER ELECTRIC LTD (EDI)




									Supplier Part #(s)

										A9L20501







								Pack Size
								1












      AC_Manual00254463/0000320505_Brochure.pdf
      System configurationTN-S, TT
      Type of poles1/N/PE
      Nominal discharge surge current (8/20)5kA
      Nominal voltage AC400V
      Maximum continuous voltage AC350V
      Voltage protection level1.4kV
      Voltage protection level L-N1.1kV
      Voltage protection level N-PE1.4kV
      Mounting methodDIN rail (Top hat 35mm)
      Construction size4 modular spacing
      Maximum conductor cross section solid (solid, stranded)25mm²
      Maximum conductor cross section flexible (fine-strand)16mm²
      With remote signalling contactYes
      Signalling at the deviceOptic
      Category type 2Yes
      Degree of protection (IP)IP20





										*More product details can be found in

											product's datasheet
