Graphic Display Panel

(I) TOUCH PANEL 3.5IN COLOUR

Industrial Control & Automation

(I) TOUCH PANEL 3.5IN COLOUR

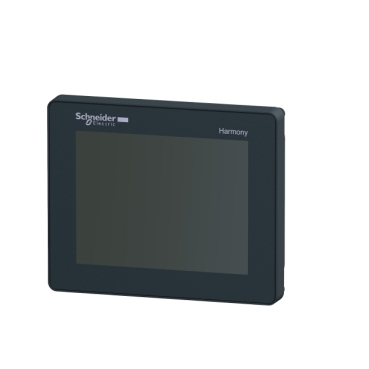

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Hover to Zoom

(I) TOUCH PANEL 3.5IN COLOUR
  • Corys SKU 0001069691
  • Part No HMISTU655
  • Brand SCHNEIDER ELECTRIC LTD (EDI)
  • Corys SKU 0001069691
  • Part No HMISTU655
  • Brand SCHNEIDER ELECTRIC LTD (EDI)

    • Industrial Control & Automation

    (I) TOUCH PANEL 3.5IN COLOUR

    This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

      This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.






									Description
									This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.





									Corys No

										0001069691




      With colour displayYes
      Number of colours of the display65536


								UOM
								EA




								Brand
								SCHNEIDER ELECTRIC LTD (EDI)




									Supplier Part #(s)

										HMISTU655







								Pack Size
								1












      AC_Manual00254463/0001069691_Userguide.pdf
      Supply voltage DC24V to 24V
      Voltage type of supply voltageDC
      Number of HW-interfaces RS-2321
      Number of HW-interfaces RS-4851
      Number of HW-interfaces USB2
      With SW interfacesYes
      Supporting protocol for TCP/IPYes
      Supporting protocol for MODBUSYes
      Supporting protocol for PROFINET IOYes
      Supporting protocol for other bus systemsYes
      Type of displayTFT
      With colour displayYes
      Number of colours of the display65536
      Screen diagonal3.5Inch
      Number of pixels, horizontal320
      Number of pixels, vertical240
      Useful project memory/user memory16384kByte
      With touch screenYes
      With message indicationYes
      With message system (incl. buffer and confirmation)Yes
      Process value representation (output) possibleYes
      With recipesYes
      Number of password levels32
      Printer output availableYes
      Number of online languages4
      Additional software components, loadableYes
      Degree of protection (IP), front sideIP65
      Width of the front118mm
      Height of the front98.15mm
      Built-in depth (Cutout)55.3mm





										*More product details can be found in

											product's datasheet






































































    Purchased Together


















































										This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.







											Brand
											SCHNEIDER ELECTRIC LTD (EDI)




      With colour displayYes
      Number of colours of the display65536



											UOM
											EA






												Corys No

													0001069691






												Supplier Part #

													HMISTU655





											Pack Size
											1













      AC_Manual00254463/0001069691_Userguide.pdf
      Supply voltage DC24V to 24V
      Voltage type of supply voltageDC
      Number of HW-interfaces RS-2321
      Number of HW-interfaces RS-4851
      Number of HW-interfaces USB2
      With SW interfacesYes
      Supporting protocol for TCP/IPYes
      Supporting protocol for MODBUSYes
      Supporting protocol for PROFINET IOYes
      Supporting protocol for other bus systemsYes
      Type of displayTFT
      With colour displayYes
      Number of colours of the display65536
      Screen diagonal3.5Inch
      Number of pixels, horizontal320
      Number of pixels, vertical240
      Useful project memory/user memory16384kByte
      With touch screenYes
      With message indicationYes
      With message system (incl. buffer and confirmation)Yes
      Process value representation (output) possibleYes
      With recipesYes
      Number of password levels32
      Printer output availableYes
      Number of online languages4
      Additional software components, loadableYes
      Degree of protection (IP), front sideIP65
      Width of the front118mm
      Height of the front98.15mm
      Built-in depth (Cutout)55.3mm








													*More product details can be found in

														product's datasheet
